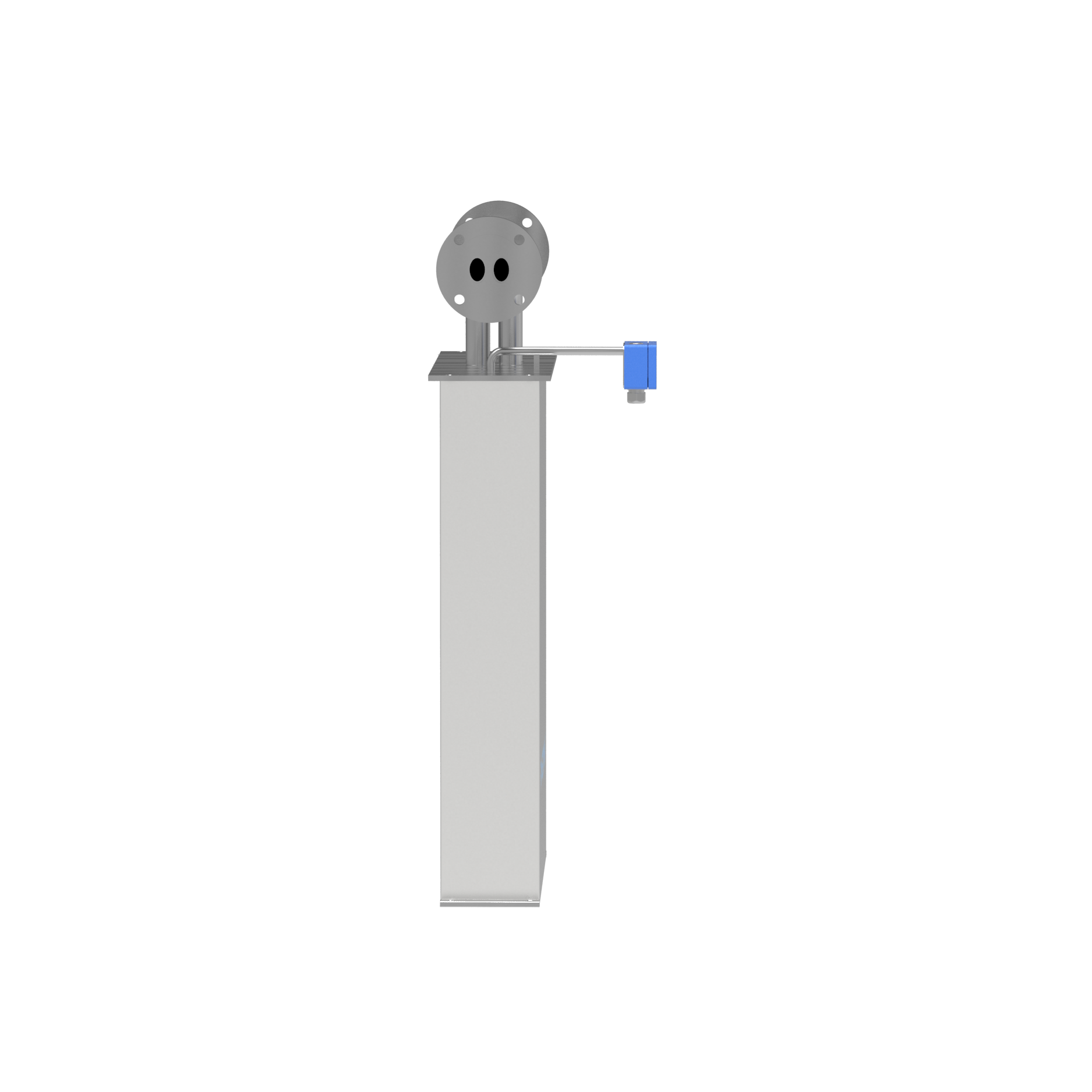

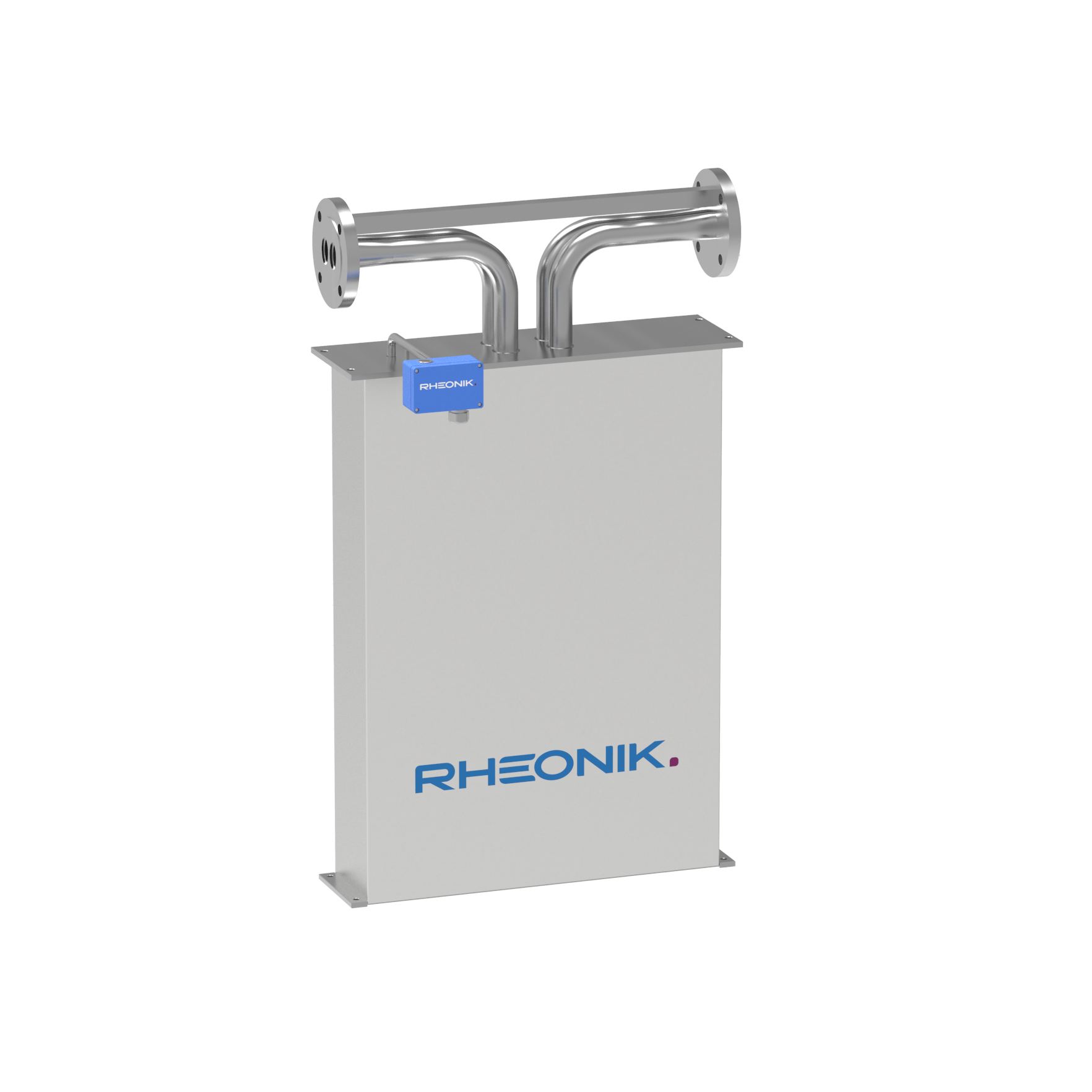

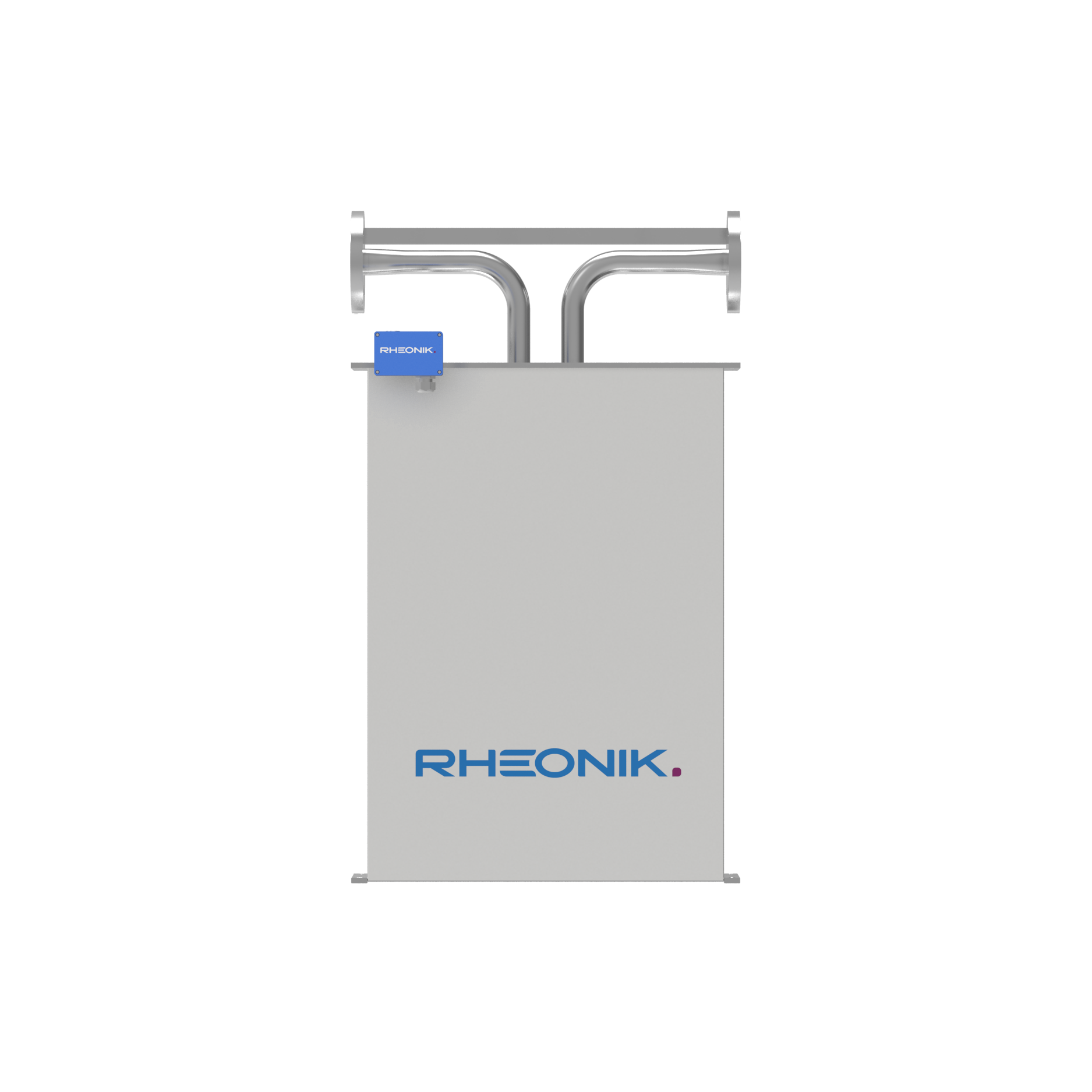

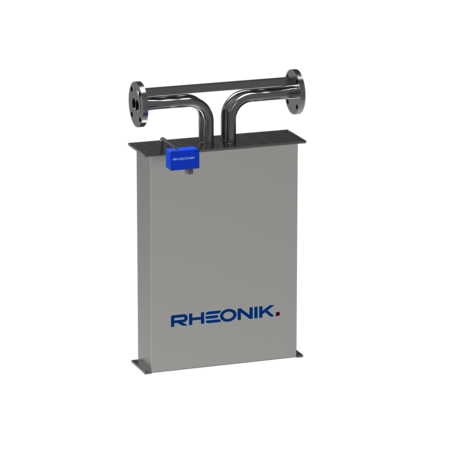

RHM 40
FLOW SENSOR
The RHM 40 Coriolis sensor offers a low pressure drop and exceptional turndown capability. Designed for general process applications, the RHM 40 is available with a choice of materials and the highest pressure ratings.
- Range: 20 kg/min up to 1500 kg/min
- Pressure: up to 380 bar (5511 psi)
- Temperature: -196°C (-321°F) up to +350°C (662°F)
- Accuracy: 0.1 % of rate
- Materials: SS 316L / SS 316Ti, Alloy C22 – 2.4602, Super Duplex – 1.4410
- Process Connection: 2" up to 3"
General Specifications
Nominal Flow (Qnom)* | 1200 kg/min (2645.6 lb/min) |
Maximum Flow (Qmax)* | 1500 kg/min (3306.9 lb/min) |
Typical Minimum Flow (Qmin)* | 20 kg/min (44.1 lb/min) |
Serial Tube / Single Path | Flow rates Qmax, Qnom and Qmin for "serial" sensors will be 50 % of the above listed parallel/dual path version. |
Operating Temperature | Fluid temperature range options cover applications from -196 °C to +350 °C (-320 °F to +662 °F). For integral transmitter versions please refer to transmitter datasheet |
Ambient Temperature | -50 °C to +80 °C (-60 °F to +180 °F) (standard) |
Pressure Ratings | Up to 433 bar / 6280 psi - dependent upon material |
Electrical Connection Sensor w/o Integral Transmitter | M20 x 1.5 standard cable entry for JM, SM terminal box versions Optional entries available : ½” NPT or M25 x 1.5 (only for SM) or ¾” NPT (only for SM) Max. cable length to remote RHE transmitter 100 m / 328 ft |
Sensor Enclosure Materials | Stainless steel 304 (standard), SS 316L (optional) Coated aluminum terminal box, SS 316L terminal box (optional) |
Enclosure Type | Protection class IP66 (IP66 is mostly equivalent to NEMA 4X) Optionally IP66-IP67 (IP67 declared by manufacturer, IP67 is mostly equivalent to NEMA 6) |
Wetted Materials | Flow tubes SS 316Ti, SuperDuplex or Alloy C22 Tantalum - Consult Factory Additional/customer specific materials available upon request |
Process Connections | Nearly any - The Rheonik AnyPipeFit Commitment covers a wide range of process connections types and sizes. Consult factory for types/sizes not listed in this data sheet on the Mechanical Construction pages |
Pressure Rating Compliance | Europe – PED: Pressure Equipment Directive |
Certifications and Approvals | ATEX / IECEx Approvals for Zone 0, 1, 2 (details see pace 12) North American Approvals Class I, Div. 1, 2, Gr. A,B,C,D, Zone 0, 1, 2 Custody transfer approval (OIML R117) American Bureau of Shipping (ABS) DNV approval for marine applications |
Testing and Inspection | All sensors are hydro tested, calibrated and supplied with a traceable calibration certificate. Customized calibration and testing services are available |
Project Documentation and QA, Services | Rheonik offers a full set of services for large and complex engineering projects. •Certificates of origin and conformity, mill certificates •Data books including WPS-WPQR, WQS, NDT, test & quality plans, functional testing, calibration procedures, customized packing, factory acceptance etc. •Painting to project specification •Start up and commissioning services on/offshore |
Options | Enclosure heating for high temperature applications Cleaning for oxygen service , … For more consult factory |
* At Qₙₒₘ pressure drop across a parallel tube sensor will be approximately 0.75 bar (10.1 psi) for H₂0. Sensors can be operated at higher flow rates up to Qₘₐₓ but pressure drop will be higher. Typical Minimum Flow Qₘᵢₙ is the recommended lowest flow rate for an accurate measurement. Sensors will measure flow rates lower than Qₘᵢₙ but uncertainty will increase beyond 1 % of rate.
The flow rate specifications above relate to standard pressure, parallel tube, manifold sensor versions. Models with higher pressure ratings have increased wall thickness and will have higher pressure drops.
