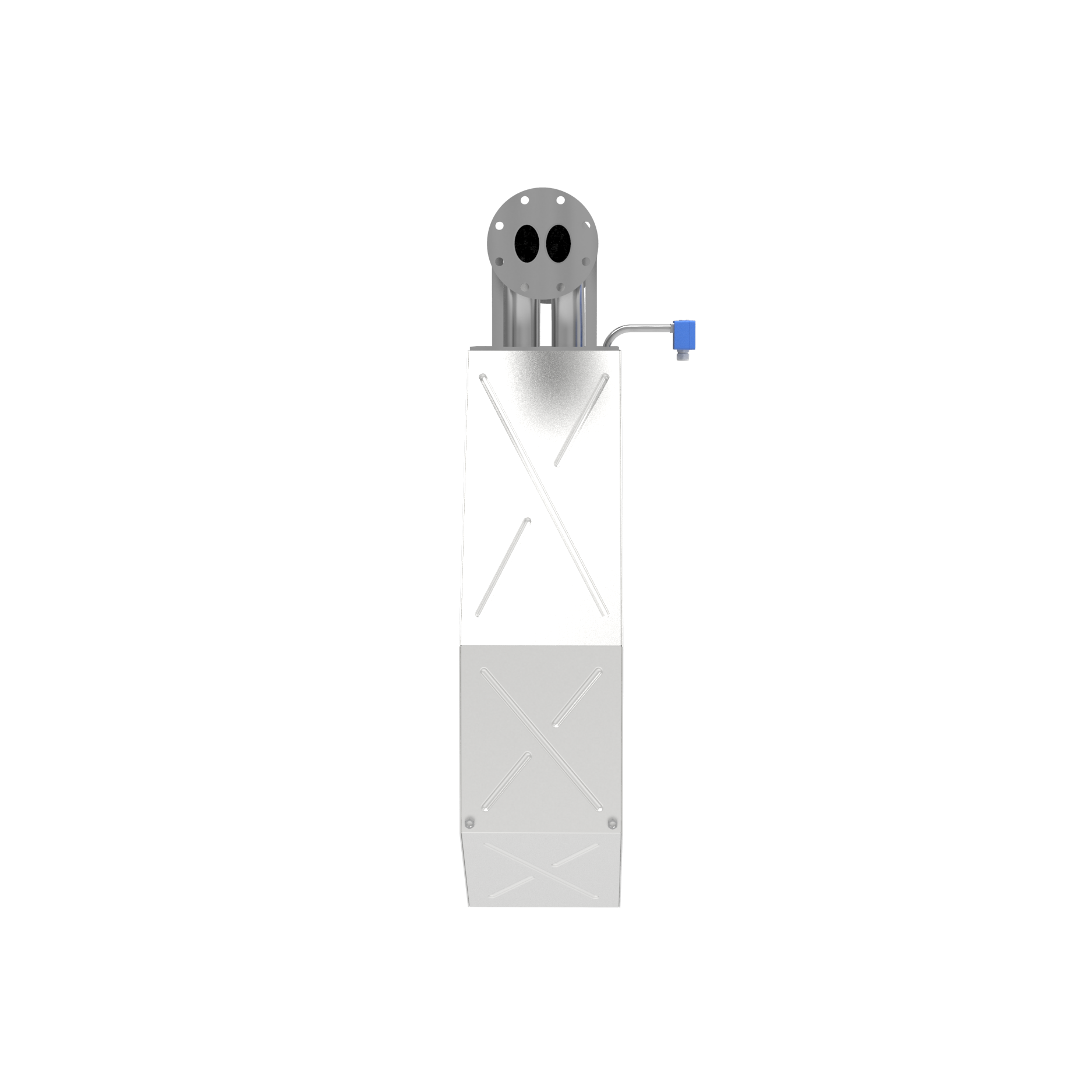

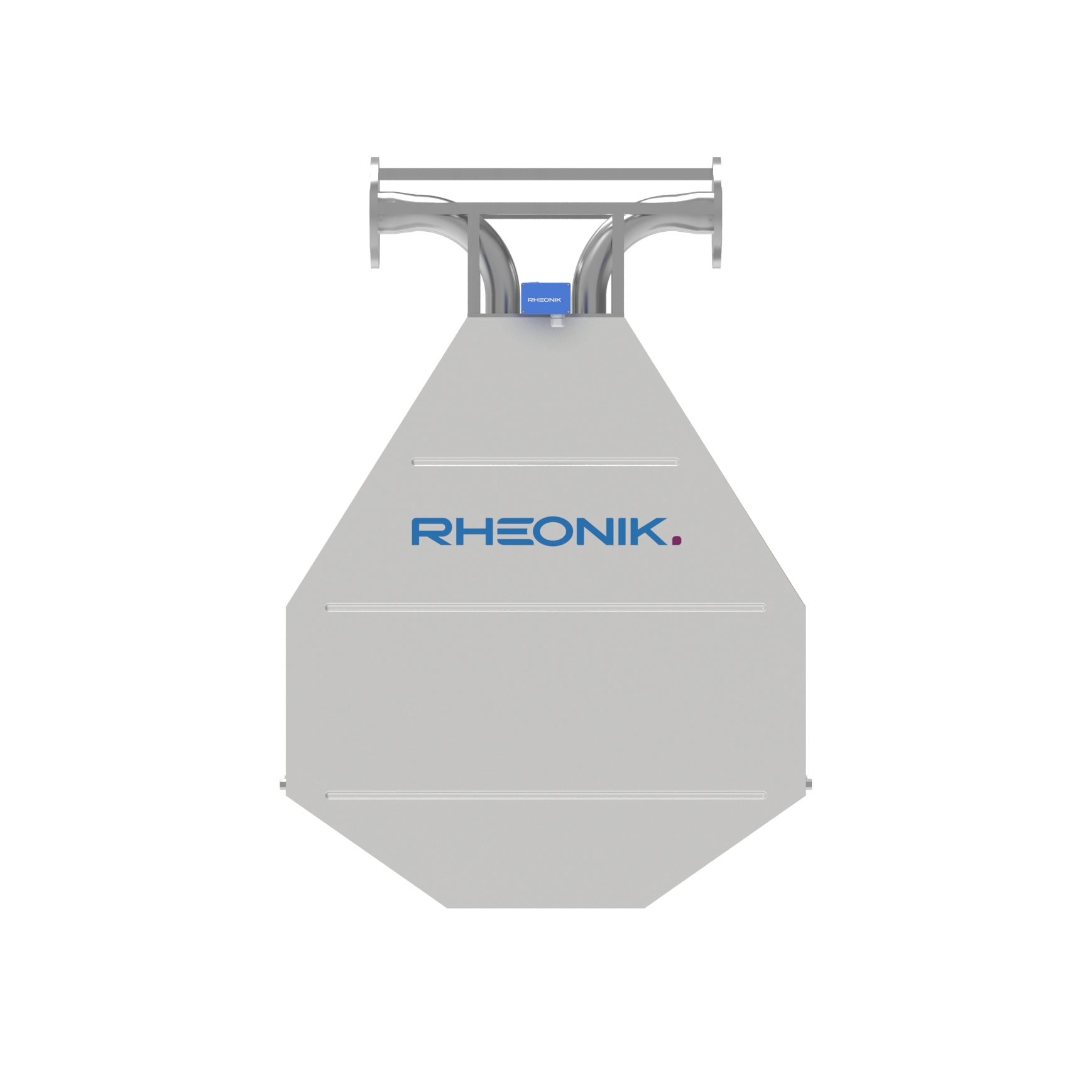

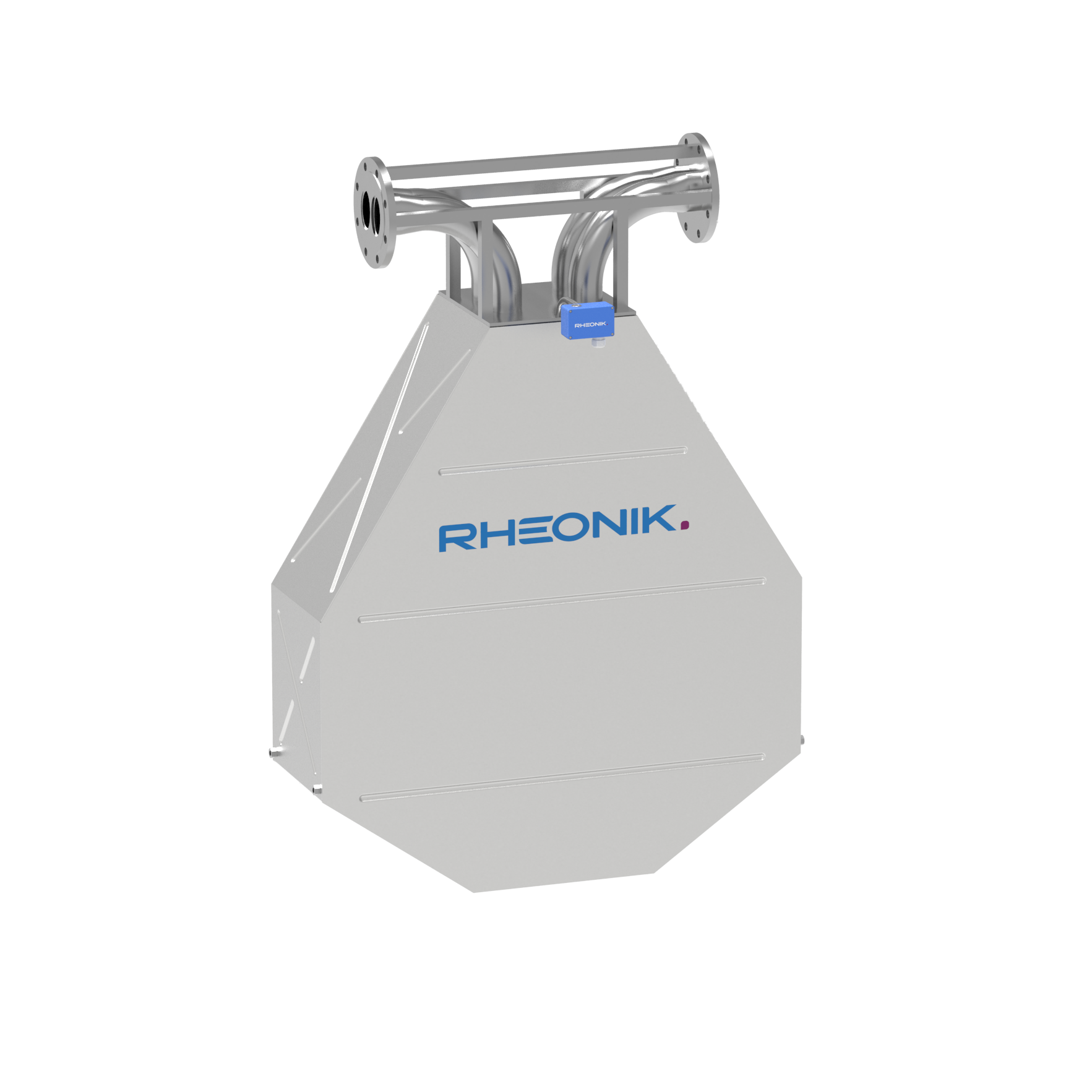

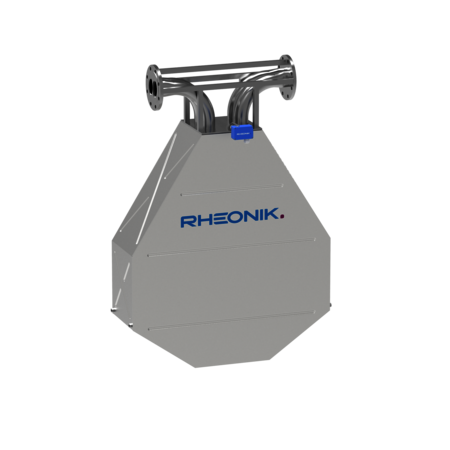

RHM 80
FLOW SENSOR
The RHM 80 excels in tough applications where high temperatures, pressures and corrosive fluids are present. Its heavy duty construction withstands extreme applications without losing Coriolis meter performance.
- Range: 80 kg/min up to 8000 kg/min
- Pressure: up to 130 bar (1885 psi)
- Temperature: -196°C (-321°F) up to +350°C (662°F)
- Accuracy: 0.1 % of rate
- Materials: SS 316L / SS 316Ti, Super Duplex – 1.4410, Alloy C22 – 2.4602
- Process Connection: 6" up to 6"
General Specifications
Nominal Flow (Qnom)* | 5000 kg/min (11023 lb/min) |
Maximum Flow (Qmax)* | 8000 kg/min (17637 lb/min) |
Typical Minimum Flow (Qmin)* | 100 kg/min (176 lb/min) |
Operating Temperature | Fluid temperature range options cover applications from -196°C to +250°C (-320°F to +482°F). For integral transmitter versions please refer to transmitter datasheet |
Ambient Temperature | -50°C to 80°C (-58°F to 176°F) |
Pressure Ratings | Up to 341 bar / 4946 psi - dependent upon material |
Electrical Connection Sensor w/o Integral Transmitter | M20 x 1.5 standard cable entry for JM, SM terminal box versions Optional entries available : ½” NPT or M25 x 1.5 (only for SM) or ¾” NPT (only for SM) Max. cable length to remote RHE transmitter 100 m / 328 ft |
Sensor Enclosure Materials | Stainless steel 304 (standard), SS 316L (optional) Coated aluminum terminal box, SS 316L terminal box (optional) |
Enclosure Type | Protection class IP66 (IP66 is mostly equivalent to NEMA 4X) with Standard Temperature Range (Option N1 / NA); IP65 (IP65 is better than NEMA 4) with Temperature Ranges E2, E3, H4, H5 with recommended insulation (details see manual) |
Wetted Materials | Flow tubes SS 316Ti, SuperDuplex or Alloy C22 Additional/customer specific materials available upon request |
Process Connections | Nearly any – the Rheonik AnyPipeFit Commitment. Consult factory for types/sizes not listed in this data sheet on the Mechanical Construction pages |
Pressure Rating Compliance | Europe – PED: Pressure Equipment Directive |
Certifications and Approvals | ATEX / IECEx Approvals for Zone 0, 1 (details see page 10) North American Approvals Class I, Div. 1, 2, Gr. A,B,C,D, Zone 0, 1, 2 Custody transfer approval (OIML R117) American Bureau of Shipping (ABS) DNV approval for marine applications |
Testing and Inspection | All sensors are hydro tested, calibrated and supplied with a traceable calibration certificate. Customized calibration and testing services are available |
Project Documentation and QA, Services | Rheonik offers a full set of services for large and complex engineering projects. •Certificates of origin and conformity, mill certificates •Data books including WPS-WPQR, WQS, NDT, test & quality plans, functional testing, calibration procedures, customized packing, factory acceptance etc. •Painting to project specification •Start up and commissioning services on/offshore |
Options | Enclosure heating for high temperature applications Cleaning for oxygen service , … For more consult factory |
* At Qₙₒₘ pressure drop across a parallel tube sensor will be approximately 0.4 bar (6 psi) for H₂0. Sensors can be operated at higher flow rates up to Qₘₐₓ but pressure drop will be higher. Typical Minimum Flow Qₘᵢₙ is the recommended lowest flow rate for an accurate measurement. Sensors will measure flow rates lower than Qₘᵢₙ but uncertainty will increase beyond 1 % of rate.
The flow rate specifications above relate to standard pressure, parallel tube, manifold sensor versions. Models with higher pressure ratings have increased wall thickness and will have higher pressure drops.
